Product description

ULTRAFIT® WELDED STANDARD FEATURES

• Absolute Retention Ratings with efficiencies up to 99.98% (beta 5000)
• Graded-Density, Composite Layer Design Technology™ combines coarse and fine layers to optimize flow, efficiency, and dirt-holding capacity
• Individual layers of absolute rated media create high loading, depth filtration
• Progressive filtration removes particles of decreasing size with each successive layer
• Integrated Polymeric Support is a standard design feature
• Polypropylene Construction: Series 100, 500, 800
• 100% FDA compliant materials (21 CFR 177.1520)
• Support Jacket prevents fiber migration downstream
• TruSeam™ finished edge and inverted bottom
• Replaces cartridges and other more expensive filter media
• Individually wrapped for cleanliness
• Single-use, disposable filter bag

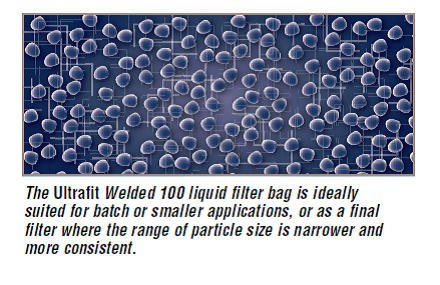

ULTRAFIT® Welded 100 Series

• Ideally suited for batch filtration, polishing, or as a final filter
• Low to medium solids holding capacity
• Designed to filter liquids where the range of particle size is narrow and consistent
• Provides highly efficient liquid filtration for applications requiring consistent levels of purity
• Integrated Polymeric Support is a standard design feature
• 97% efficiency ratings
• Available micron ratings: 1, 2, 5, 10, 25, 50, 100, 200

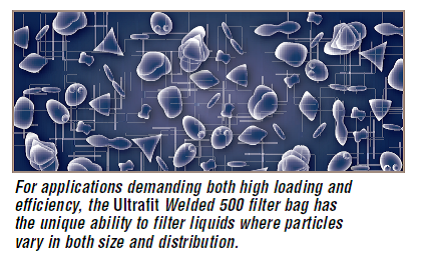

ULTRAFIT® Welded 500 Series

• For applications requiring high-purity results
• High solids loading capacity
• 60% more surface area than Ultrafit 100 filter bags
• Designed to filter liquids where particles vary in both size and distribution
• Integrated Polymeric Support is a standard design feature
• 99% efficiency ratings (beta 100)
• Available micron ratings: 1, 2, 5, 10, 25, 50

ULTRAFIT® Welded 500 EXP Series®

• Sub-micron rated retention
• Multiple layers of the same micron rating allow finer filtration
• Integrated Polymeric Support is a standard design feature
• 99% efficiency ratings (beta 100)
• Available micron ratings: <1.0

ULTRAFIT® Welded 800 Series

• Sub-micron rated retention
• Ideal for high-purity and critical liquid process applications
• Integrated Polymeric Support is a standard design feature
• 99.98% efficiency ratings (beta 5000)
• Available micron ratings: 0.4, 0.6, 0.8

ULTRAFIT® Welded 800 EXP Series®

• Sub-micron rated retention
• Multiple layers of the same micron rating allow finer filtration
• Integrated Polymeric Support is a standard design feature
• 99.98% efficiency ratings (beta 5000)
• Available micron rating: 0.2

INTEGRATED POLYMERIC SUPPORT® AND DELTA-P INSERT (DP)

• A structural layer is ultrasonically laminated within the internal composite of the bag
• Allows the filter bag to sustain significantly greater differential pressure before change-out is required, without increased pressure drop
• Longer run times allow enhanced solids loading
