Product description

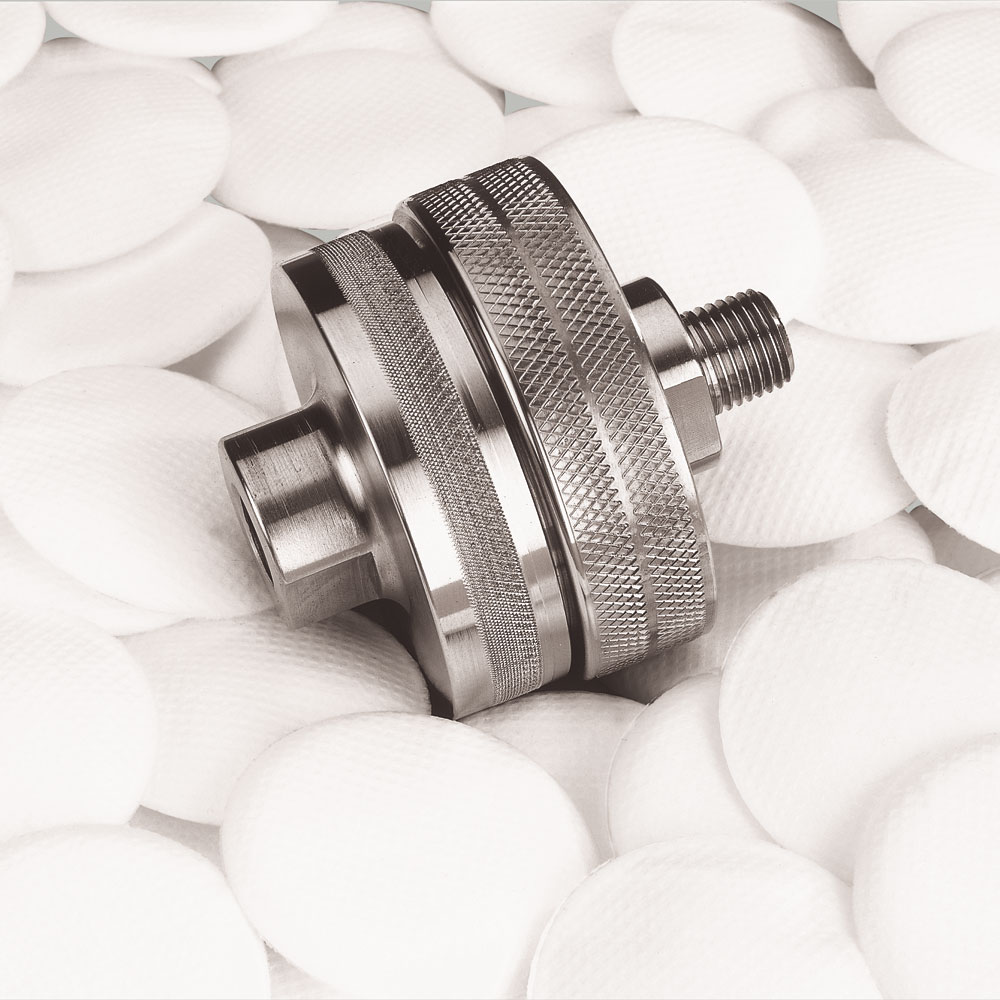

VARIABLE COMPRESSION DISC FILTER HOUSING and COMPOSITE LAYER FILTER DISCS
The Variable Compression Disc Filter Housing secures the Ultrafit® Welded composite layer filter disc, while a small amount of liquid is filtered. Visual observation or analysis of the filtered liquid helps users select the optimum media for specific applications.
APPLICATIONS
- Collect data to determine the optimum grade of filter media for your specific requirements
- Test filter media on a small scale basis for all General Filtration and Microfiltration applications
- Sample small amounts of liquid for process scale-up or pilot studies, or from production runs
- Evaluate the performance characteristics of Ultrafit® and Accufit® Welded Filter Bag products
HOUSING DESIGN FEATURES
- Variable Compression Design assures an absolute seal with media of various thickness

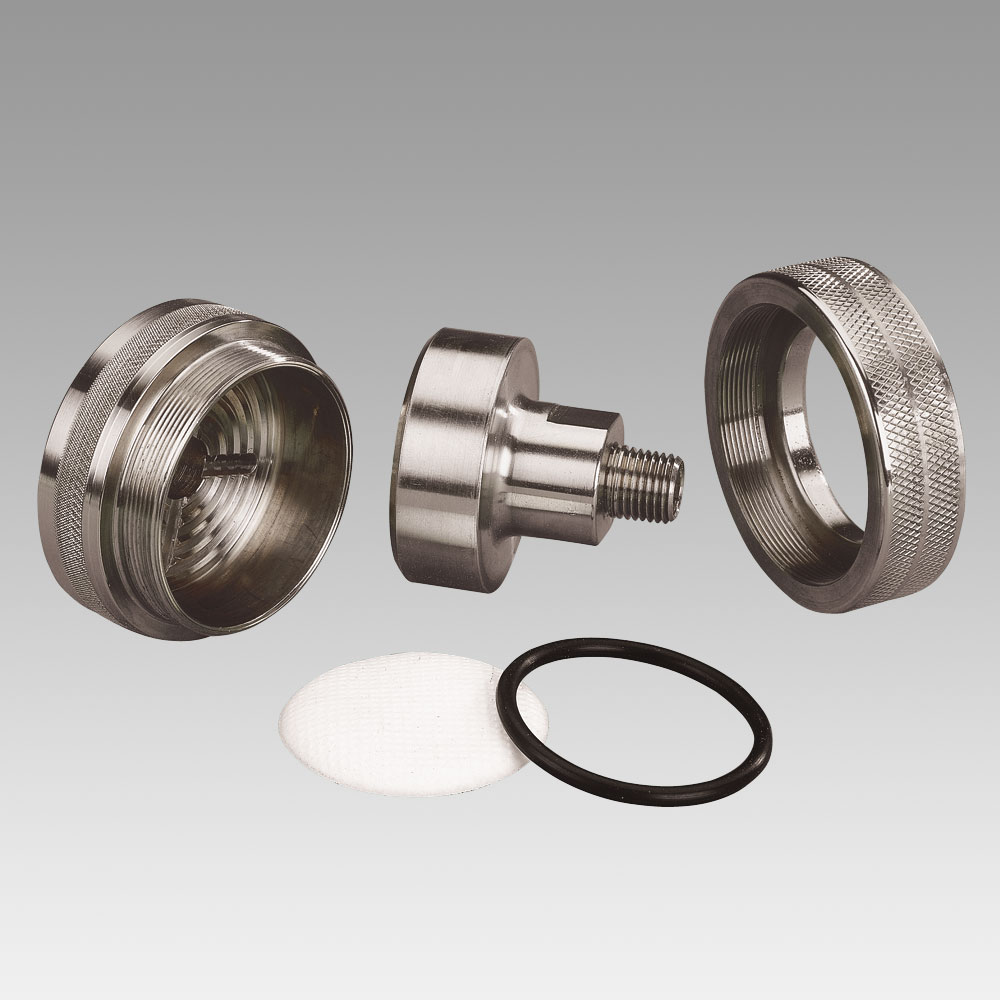

- 3-Piece Housing is simple, portable, and economical to use
- Threaded Compression Ring allows easy opening and closing
- Stainless Steel Housing is compatible with most test liquids
- ¼″ NPT Inlet and Outlet Connections
- Buna-N O-Ring included
- Housing Includes 10 assorted Filter Discs for testing (additional Filter Discs sold separately).
FILTER DISC FEATURES
- 47mm Filter Discs replicate Filtration Systems filter media with Composite Layer Design Technology™
- Ultrasonically sealed circumference eliminates bypass and directs liquid flow through the filter disc
- Available in all micron ratings of Ultrafit® Welded 100, 500, and 800 Series Liquid Filter Bags
- Accufit® Welded Filter Discs also available
