Individual Filter Housings
Filtration Systems Individual Filter Housings use a #2 size (7″dia. x 32″ long) or a #1 size (7″dia. x 16″ long) filter bag. Housings are available in ASME Code or Industrial Grade design, in T-304, T-316, or Carbon Steel. Alternate inlet and outlet connections may be ordered to allow the vessels to be placed directly in line with existing process piping.
Individual models accommodate a variety of filter media, including Filter Bags, Mesh and Micron Lined Baskets, Strainers, or Cartridges, making them extremely versatile for industrial applications.

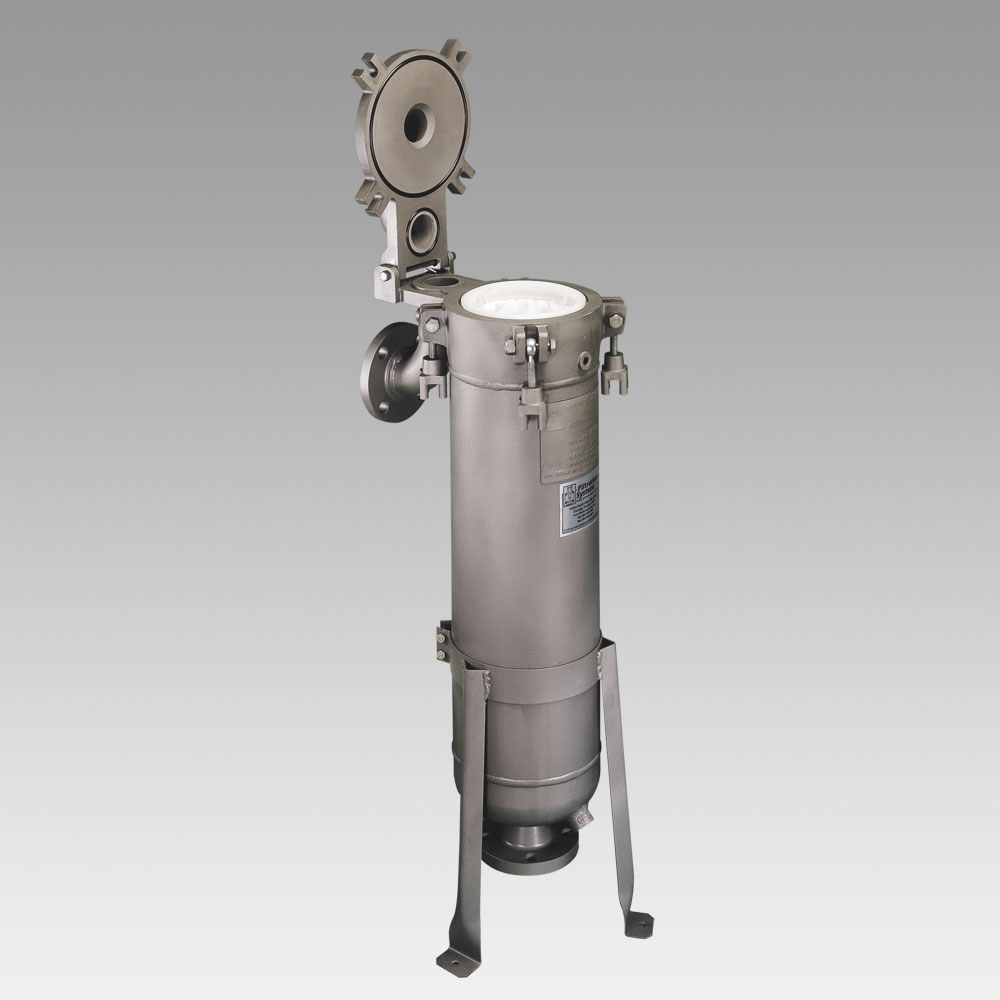

- 122 Models use a #2 size filter bag, accessory basket, or 20″ cartridges

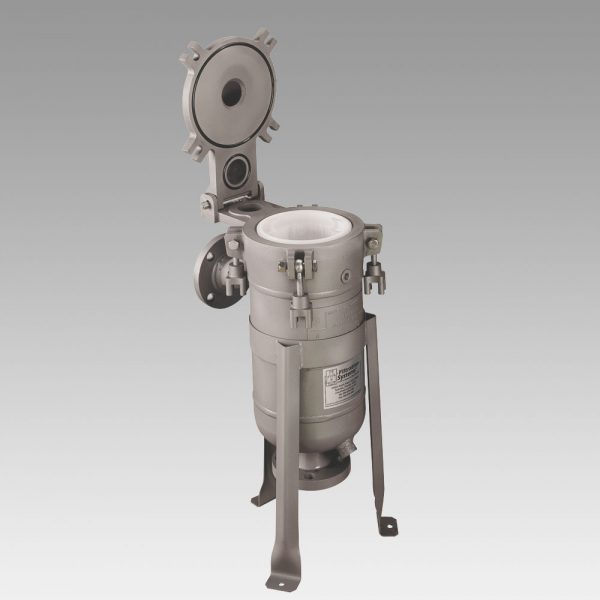

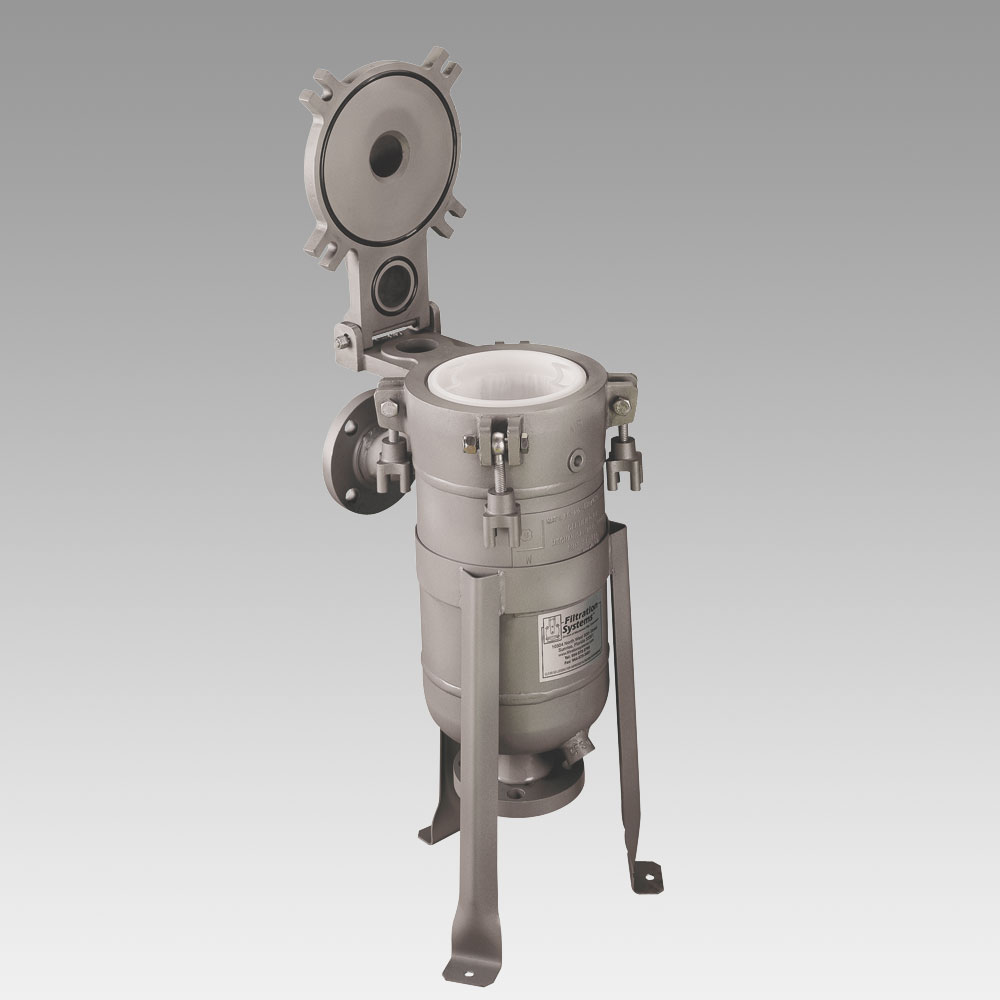

- 112 Models use a #1 size filter bag, accessory basket, or 10″ cartridges
Standard Features
- Over-The-Top Design
- ASME Code Stamp, Section VIII, Div.1 (S- Models & C- Models)
- Built to ASME Code standards (NS- Models & NC- Models)
- Blasted Finish, interior, exterior, and basket All Stainless Steel Models
- One Coat Shop Primer, exterior All Carbon Steel Models
- Investment Cast Lid and Body
- Hinged Lid with Handle, Built-in Lid Stop and Safety Detents
- Plated Carbon Steel Hardware, closure bolts & bar knobs
- Gauge Ports, upstream & downstream, ¼″ NPT
- Vent Ports, ¼″ NPT
- Upstream Drain Port, ¼″ NPT Downstream Drain Port, ¾″ NPT
- Perforated T-316 S/S Support Baskets with Longitudinal Taper
- Buna-N O-Rings
- Stainless Steel, Adjustable Tripod Stand (All Stainless Steel Models)
- Carbon Steel, Adjustable Tripod Stand (All Carbon Steel Models)
ASME Housing Specifications (S- Models & C- Models)
- T-316 Stainless Steel or Carbon Steel
- Maximum Working Pressure: 150psi or 300psi
- Maximum Working Temperature: 450°F
- Maximum Support Basket Differential Operating Pressure: 100psi
- Hydrostatically Tested to 250psi or 450psi (300psi Models)
- Inlet & Outlet: 2″ Flanges, R/F, ANSI
Industrial Grade Housing Specifications (NS- Models & NC- Models)
- T-304 or T-316 Stainless Steel or Carbon Steel
- Maximum Working Pressure: 150psi
- Maximum Working Temperature: 300°F
- Maximum Support Basket Differential Operating Pressure: 100psi
- Hydrostatically Tested to 250psi
- Inlet & Outlet: 2″ NPT
